Model: LF280K
Battery Type: Prismatic
Normal Voltage: 3.2V
Normal Capacity: 280Ah
Cycle Life: 6000 Cycles
Approx. Weight: 5420G
Approx.Dimensions:173.7mm*72mm*207.5mm

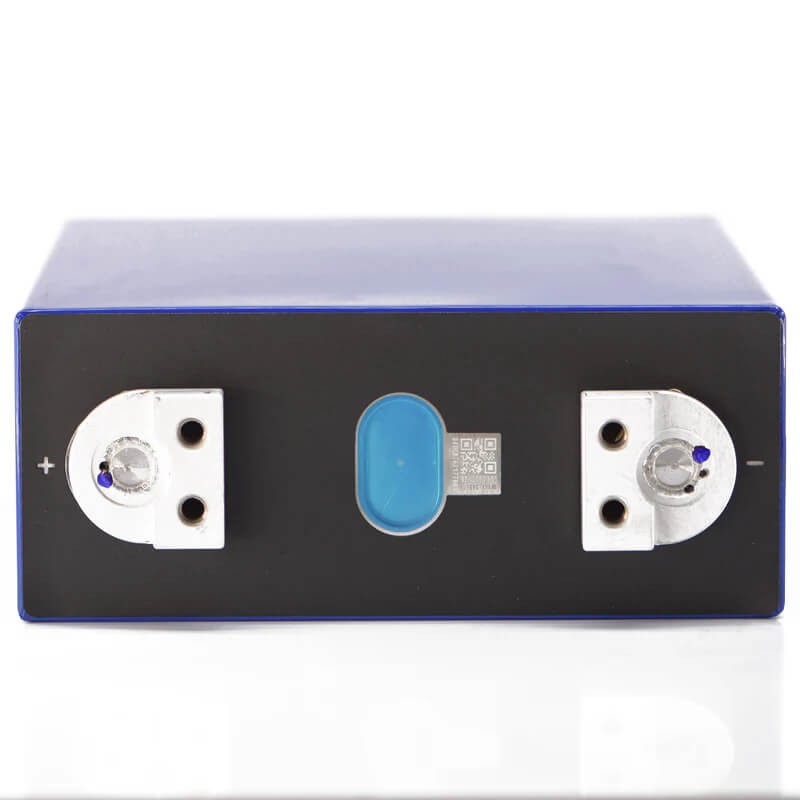

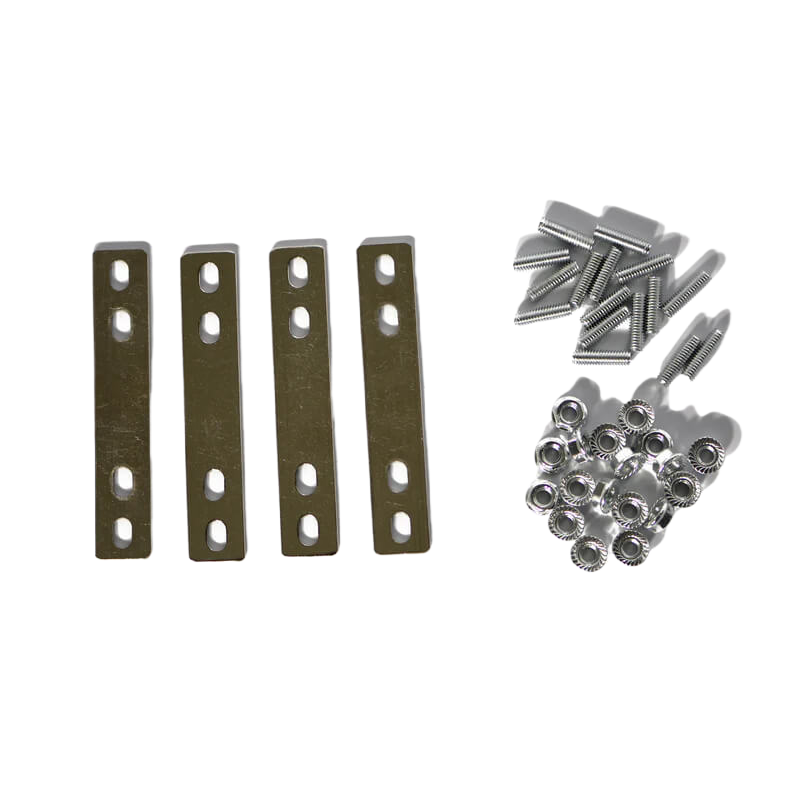

Cells include the double hole terminal block welded factory direct by EVE and Flexible busbars.
Description:

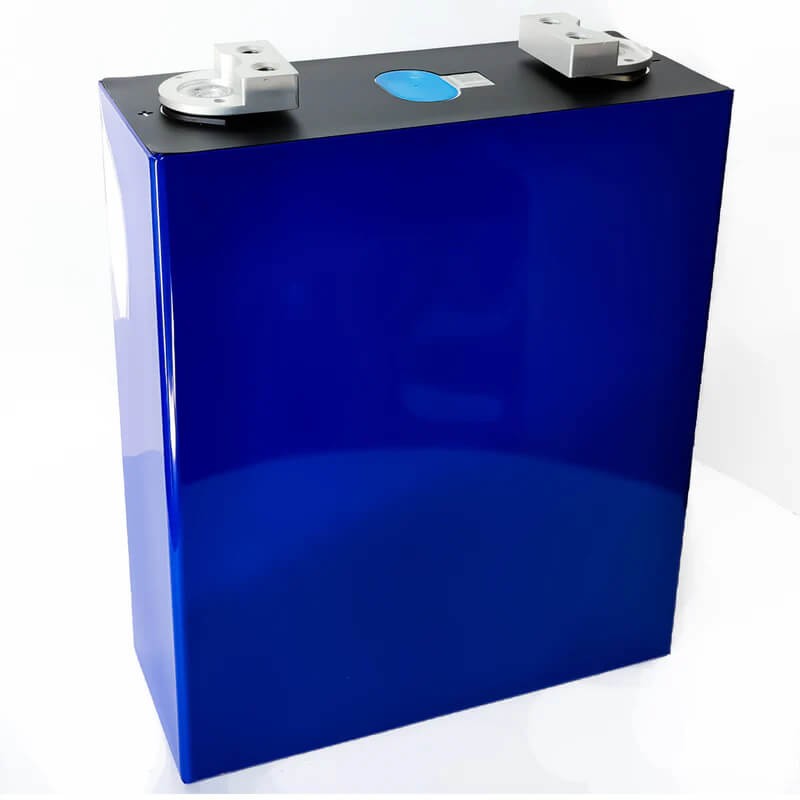

Long Cycle Life EVE LF280K Grade A Cells 3.2V 280Ah LiFePO4 Battery
( Now with 8000 cycle life and testing much higher than 280Ah, most all test above 300Ah)
Introducing the EVE LF280K Grade A Cells – a high-performance 3.2V LiFePO₄ 280Ah battery from renowned manufacturer EVE Energy. This battery offers unmatched durability and optimal performance, thanks to its precisely matched voltage, capacity, and internal resistance. Installation is simple with flexible bus-bars and included hardware, while nickel-plated copper components provide excellent conductivity and corrosion resistance. With a design life exceeding 10 years and an impressive 6,000 cycles, the EVE LF280K ensures reliable power for extended periods, making it ideal for electric vehicles, renewable energy systems, and industrial applications. Experience the superior technology of EVE Energy!
Specifications:
Manufacturer | EVE Energy |
Model | LF280K |
Form | Prismatic |
Nominal Capacity | 280Ah |
Nominal Voltage | 3.2V |
Cycle Life | 6000 cycles |
Continuous Charge/Discharge Rating | 1C (280A) |
Maximum Charge/Discharge Rating (30 Seconds) | 2C (560A) |
AC Impedance Resistance (1KHz) | ≤0.25mΩ |
Protected | No |
Rechargeable | Yes |
Approx. Dimensions (L*W*H) | 173.7mm*72mm*207.5mm |
Approx. Weight | 5420G |
Capacity Options: | 15Ah, 20Ah, 100Ah, 105Ah, 230Ah, 250Ah, 304Ah, 314Ah |
Country of Origin | China |
Compare to Traditional Lead-Acid Batteries:
Longer Lifespan: LiFePO₄ batteries have a cycle life of up to 20 years, while lead-acid batteries typically last only 3-5 years.
Lower Cost per Cycle: Although the initial investment may be higher, the long lifespan of LiFePO₄ batteries leads to a lower cost per cycle compared to lead-acid batteries.
Lightweight: LiFePO₄ batteries are generally lighter than lead-acid batteries, making them easier to handle and install.
Higher Energy Density: LiFePO₄ batteries can store more energy in the same volume, making them suitable for space-constrained applications.
Improved Safety: Using iron as the cathode material significantly reduces the risk of thermal runaway and fire hazards.
Lower Maintenance Requirements: LiFePO₄ batteries require virtually no maintenance, while lead-acid batteries need regular checks and water additions.
Environmental Friendliness: LiFePO₄ batteries contain no toxic heavy metals and are fully recyclable, minimizing their environmental impact.
Low Self-Discharge Rate: LiFePO₄ batteries can retain their charge for extended periods, making them ideal for backup power applications.
Bulk Availability: Large quantities of high-quality LiFePO₄ cells ready for immediate shipment.
High Safety Standards: Safe and reliable for various industrial and commercial applications.
Long Cycle Life: 6000 charge cycles, minimizing replacement costs.
Eco-Friendly: Free from toxic heavy metals and fully recyclable.
Wide Capacity Range: Available in various capacities, including 15Ah, 20Ah, 100Ah, 105Ah, 230Ah, 250Ah, 304Ah, and 314Ah, catering to different application needs.
High Performance: Each capacity option is engineered to deliver optimal performance in energy storage and electric vehicle systems.
Custom Orders Available: Choose the right capacity for your project, with flexible customization options to meet specific requirements.
Applications:
Renewable Energy Storage Systems (Solar Energy Systems)
Electric Vehicles Power Systems
Backup Power Systems
We stand behind our Grade A claims and know you will be more than satisfied with the product you receive. We offer a 30 Day no hassle, MONEYBACK GUARANTEE if you are unsatisfied with your cells for ANY reason. You will be responsible for the return shipping fees unless product is determined to be faulty.
We offer a 1 year warranty on all EVE LiFePO4 battery products. We offer technical support and troubleshooting throughout the duration of the warranty. We can offer greater than a 1 year warranty on the cells but you will need to contact us with your design specs for approval. Large orders of 1,000pcs+ minimum.
Warranties only apply to original owner and are non-transferrable. We will verify your purchase prior to processing any warranty claims or returns.
If it is determined that our product is obviously faulty, we will ship new product to you immediately. We will cover the cost of return shipping. This does not apply to items that have been damaged due to gross negligence, normal wear & tear, improper installation or abuse.
Our warranty does not cover items that have been damaged due to gross negligence, improper installation or abuse. If you are unsure, you should contact us before installing the product.
*Please note we have serial numbers for every product we ship so these will be checked and verified before any warranty claim can be started.
